Conversion of Supermicro CSE-846 to a JBOD Shelf

Not too much to write here, but, as the title states, I converted the case for my hyper-converged server setup into a simple JBOD Shelf. You can follow the original “journey” at this reddit post:

From that post you will see that we needed some equipment:

1 x ($28) Dual Mini SAS SFF-8088 to SAS36P SFF-8087 Adapter in PCI Bracket
2 x ($16) CABLEDECONN Mini SAS26P SFF-8088 to SFF-8088 1M External Cable

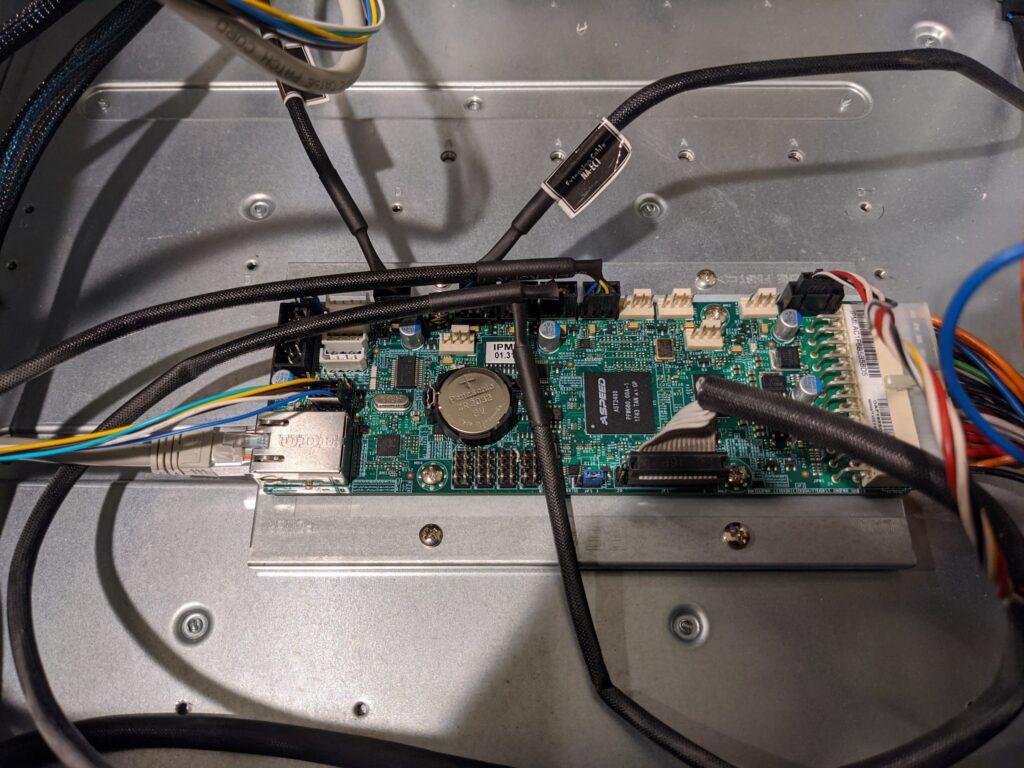

1 x ($130) SUPERMICRO Computer Power Control Board for JBOD Support IPMI 2.00
1 x ($20) Supermicro CBL-NTWK-0587 1.6FT CAT5e RJ-45 Extension Cable — (Note that I actually got this directly from Supermicro because I couldn’t actually find it for sale, they just don’t have a good link.)

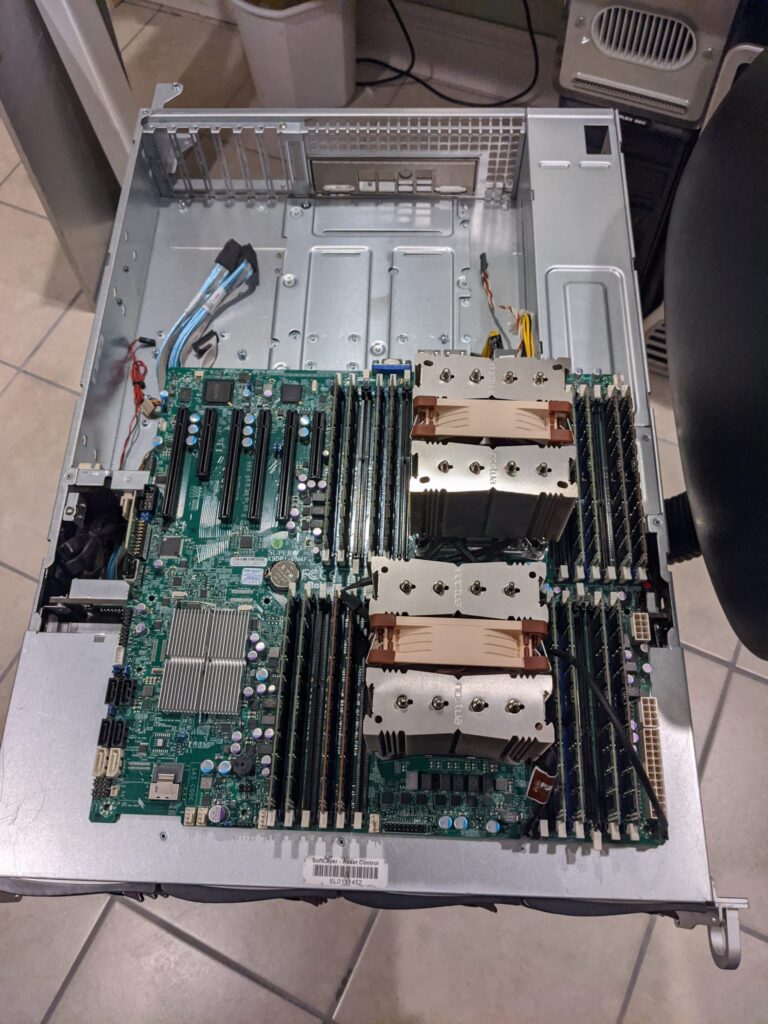

This is the CSE-846 with the old system board removed.

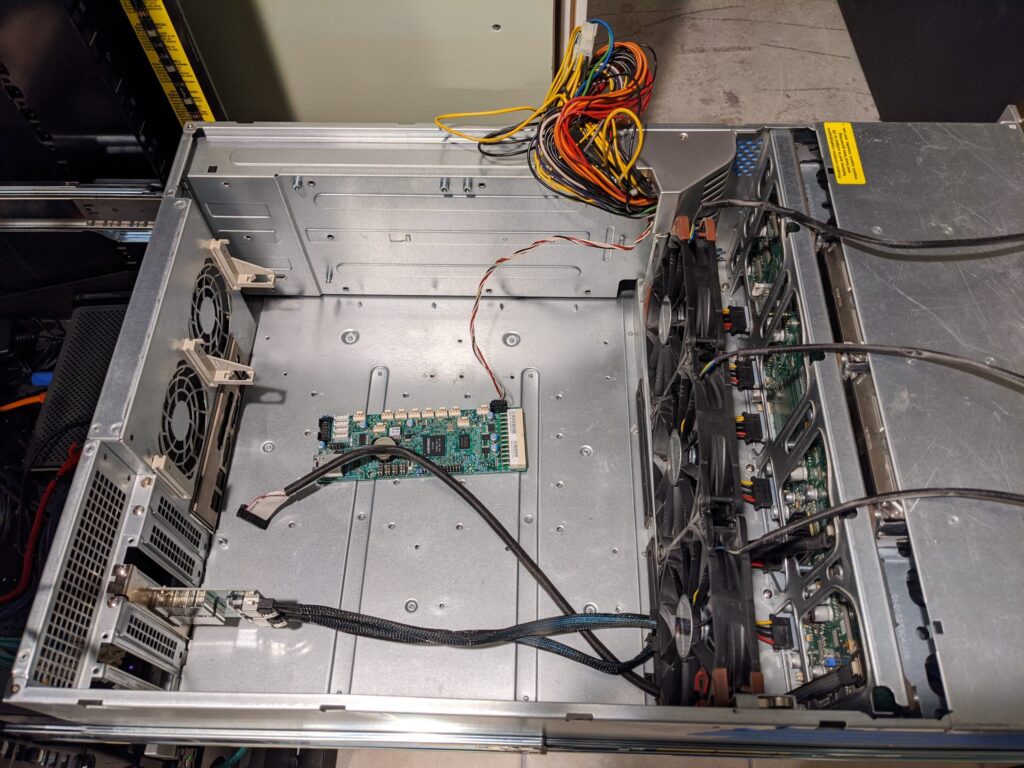

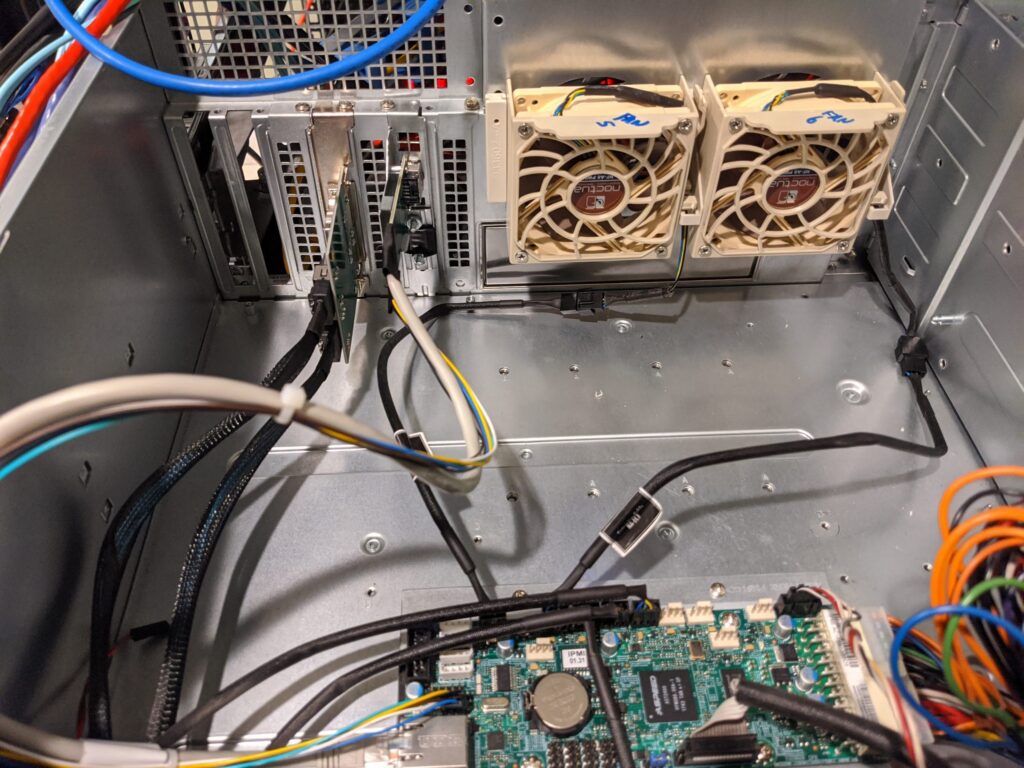

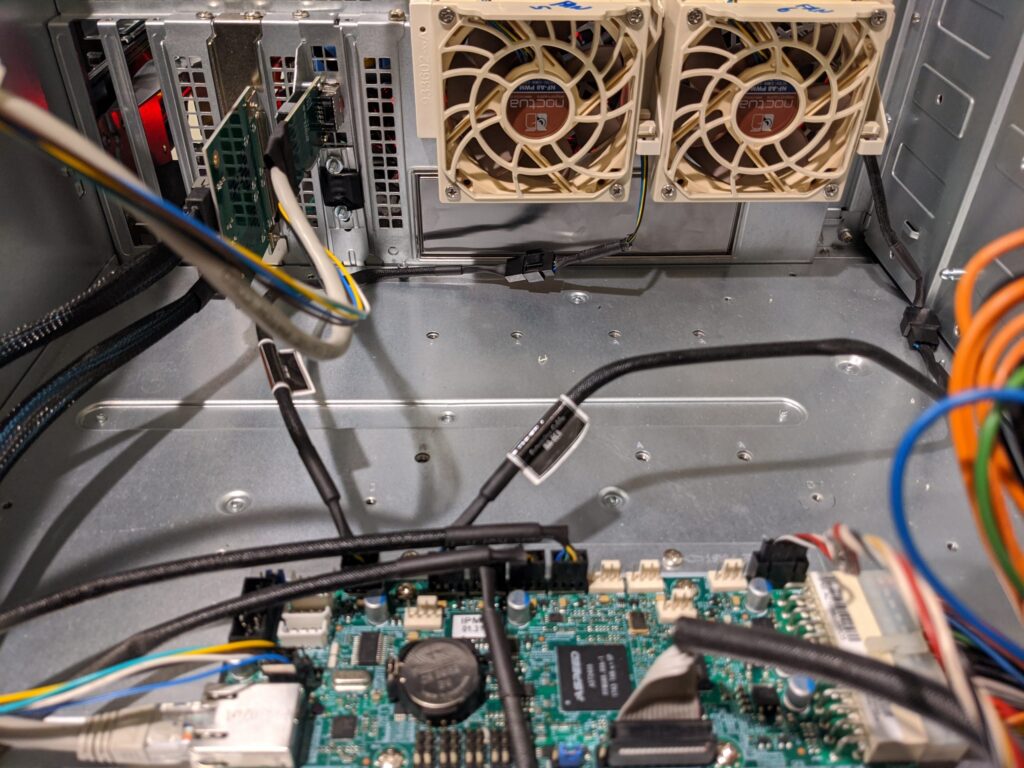

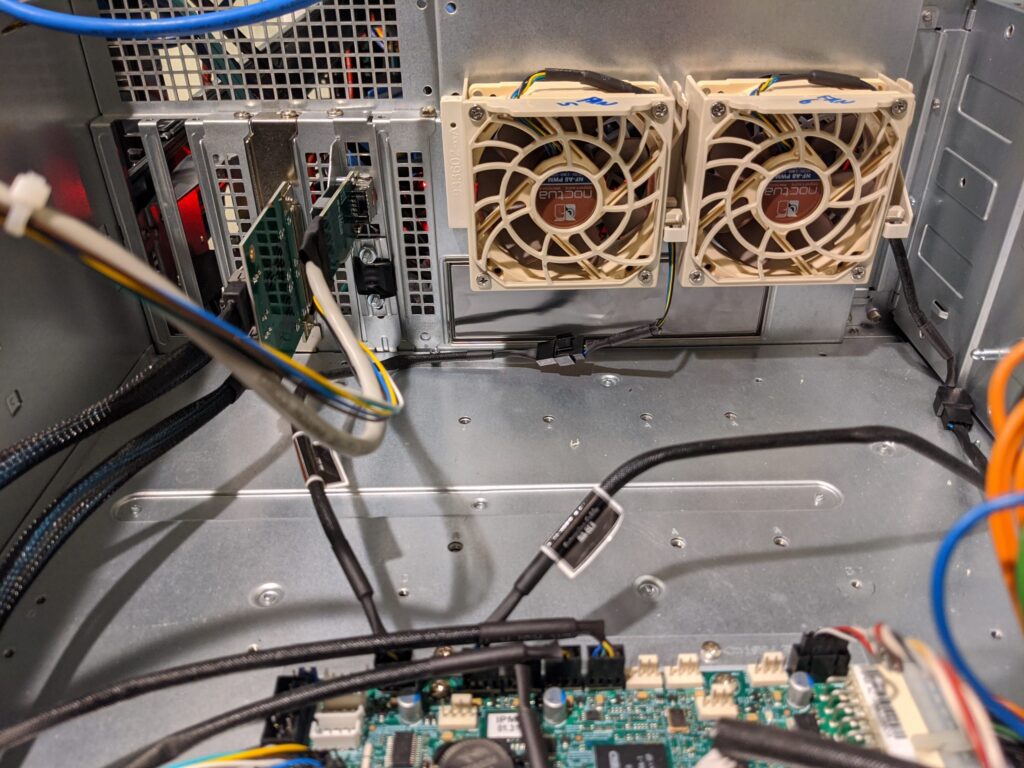

Here are some of the components getting laid out.

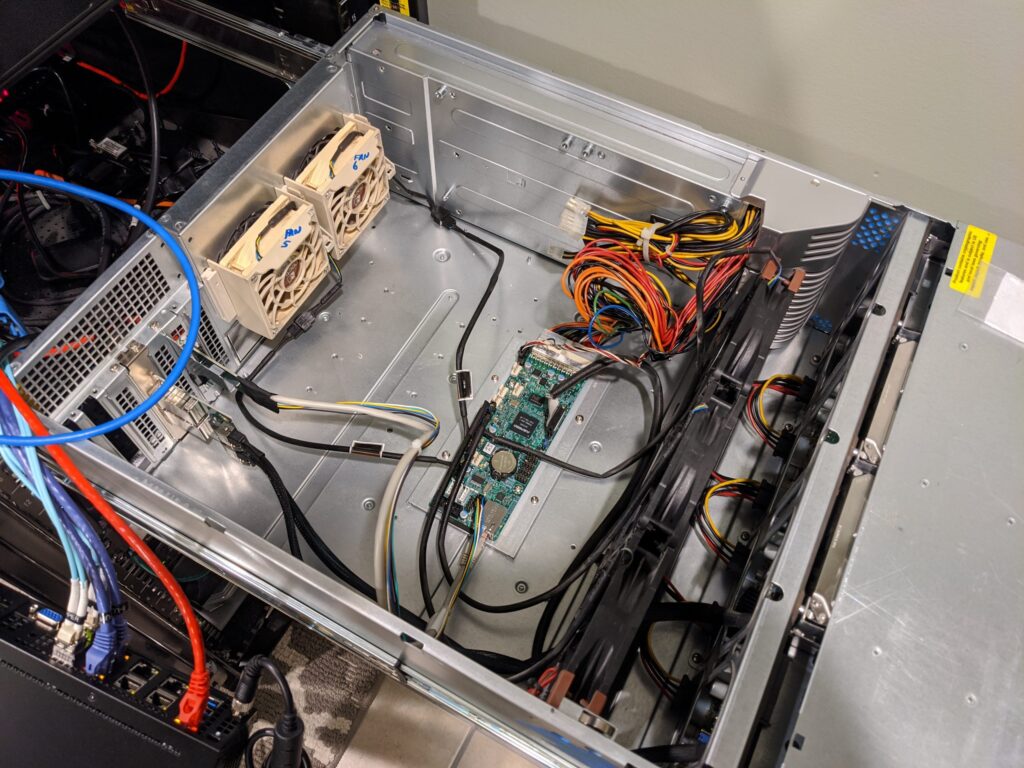

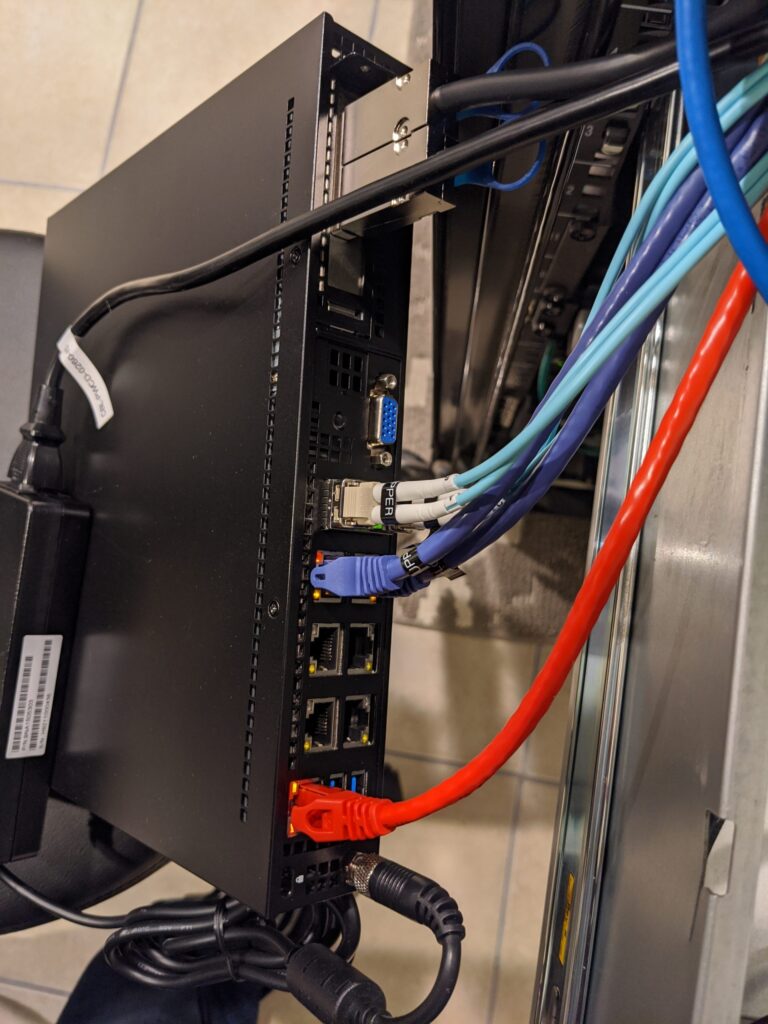

So there we have it… A regular hyper-converged server converted over to a JBOD shelf.
